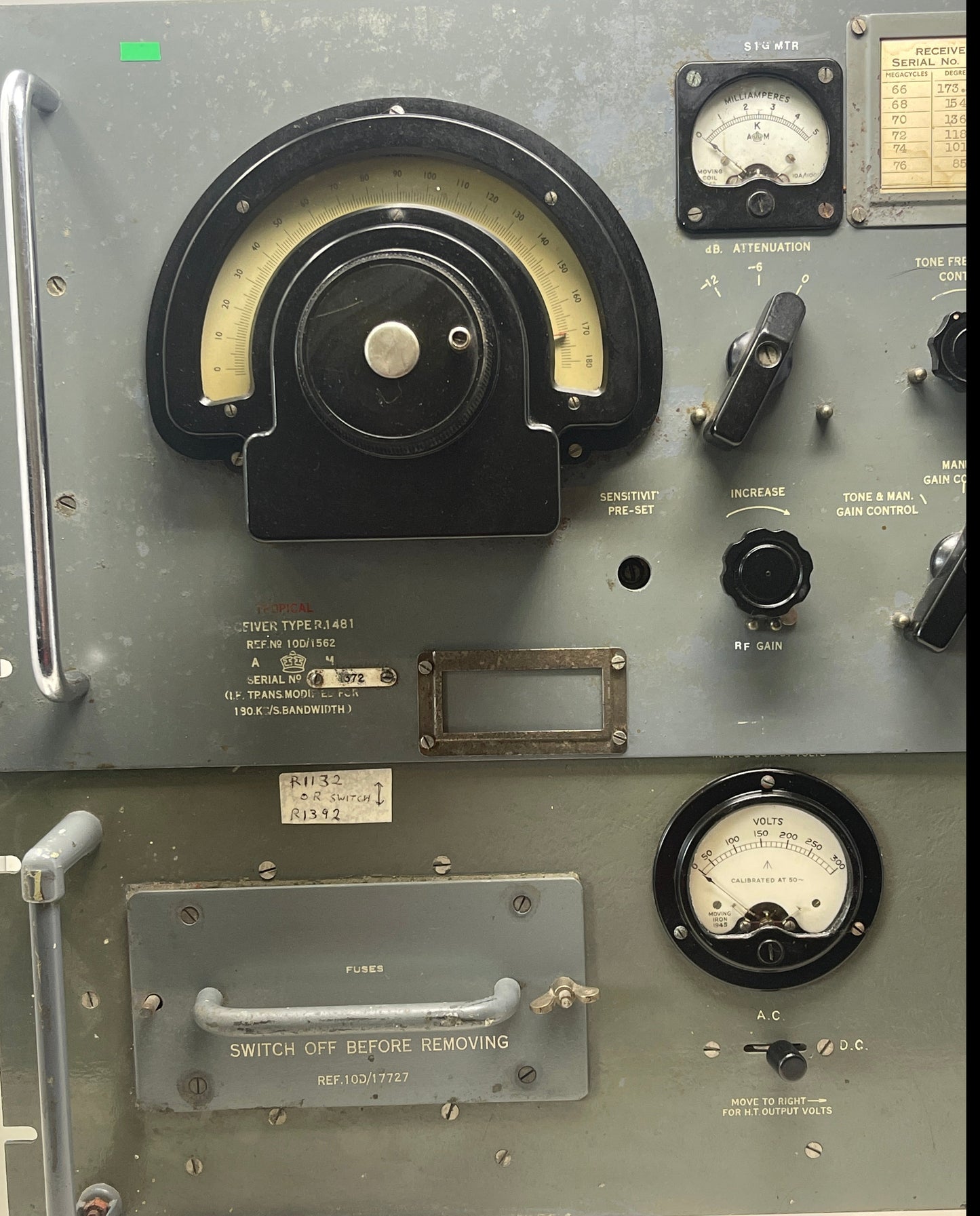

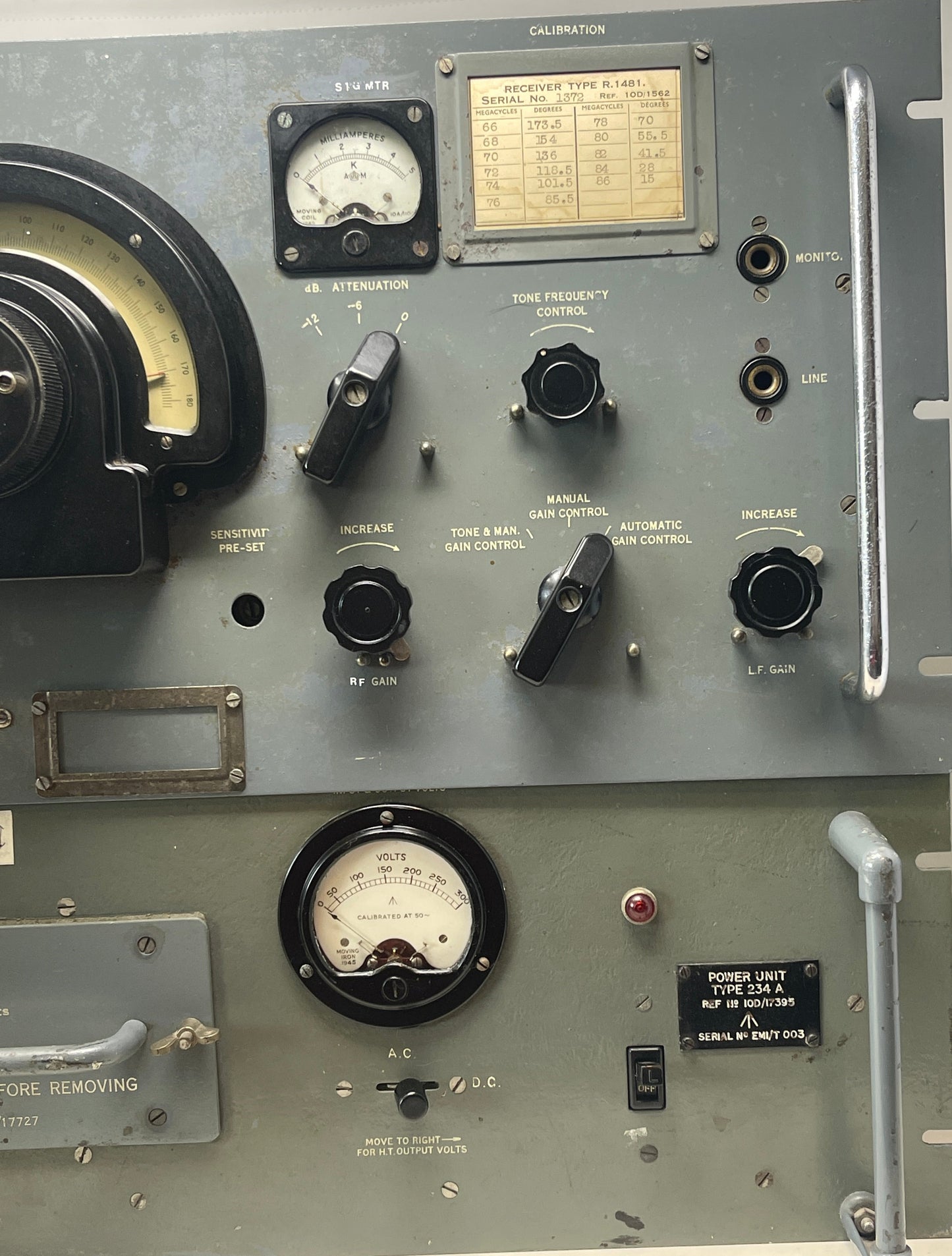

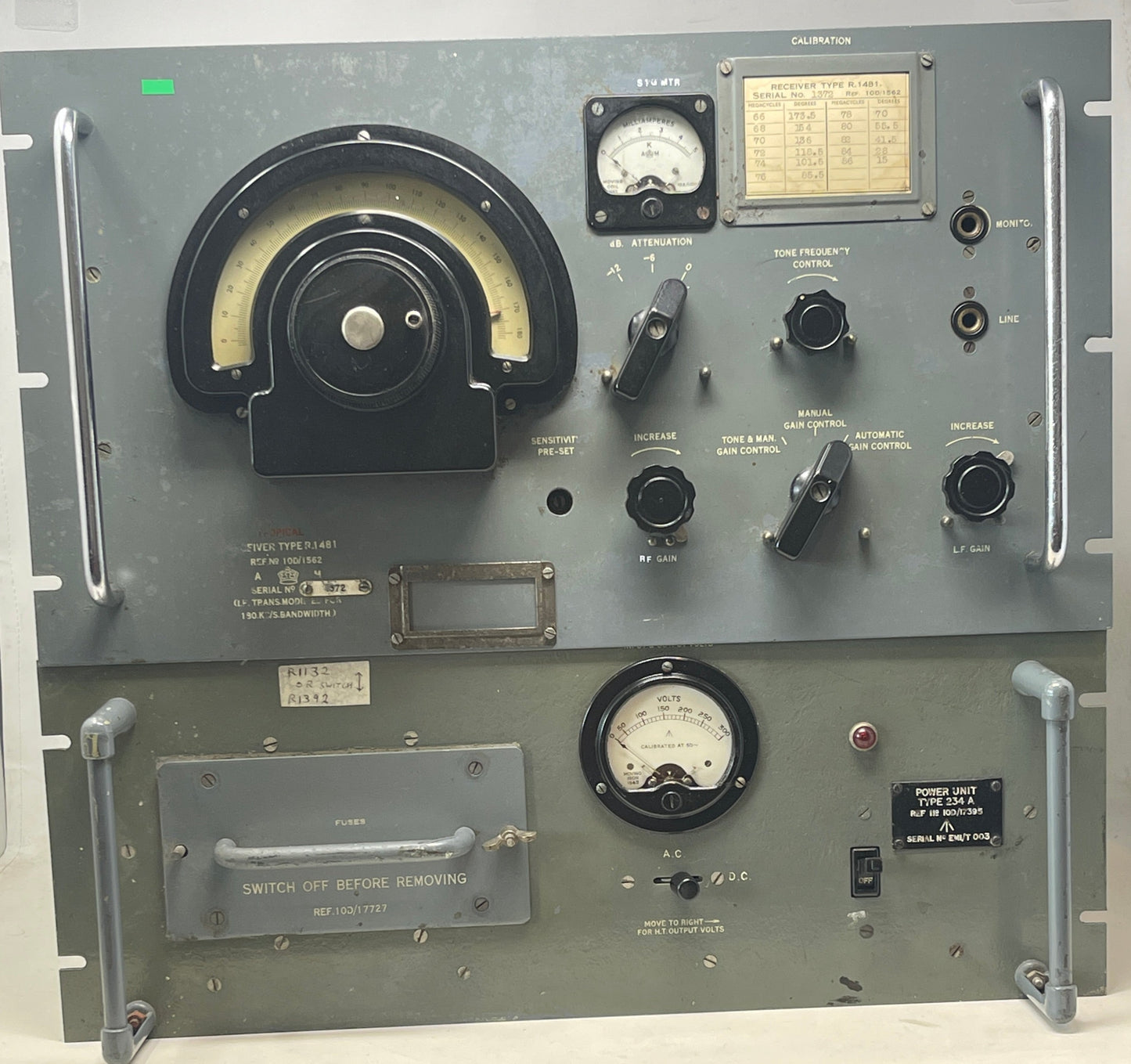

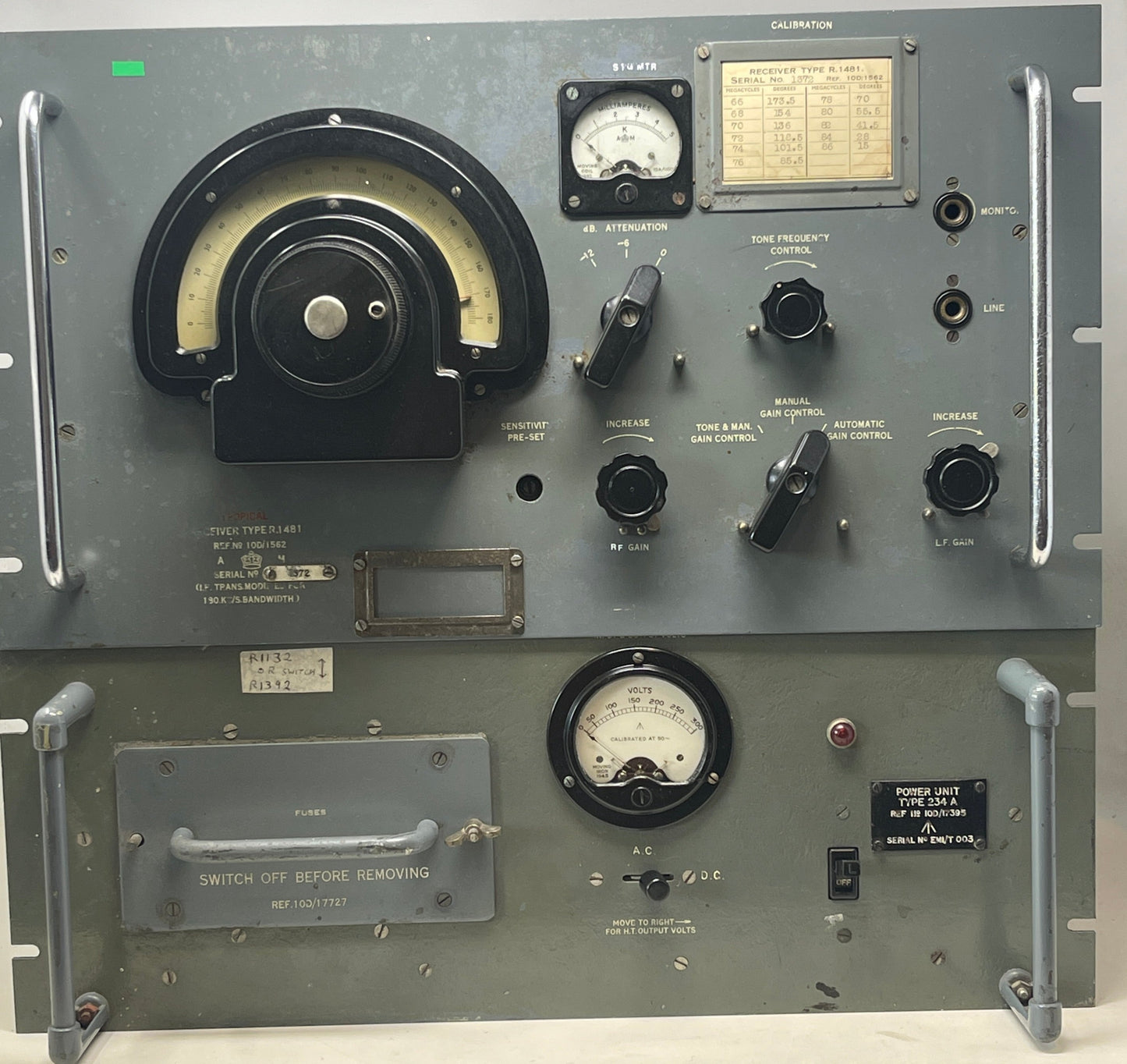

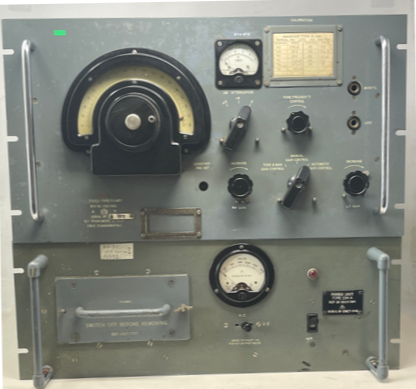

Air Ministry RAF R1132 Receiver Set with R1139 Power Supply
Air Ministry RAF R1132 Receiver Set with R1139 Power Supply
Couldn't load pickup availability
Product Condition
Product Condition
Shipping & Returns
Shipping & Returns
Shipping
All orders are subject to a delivery, packing & handling charge. The correct charges will be automatically calculated via our Shopping basket ordering system and are based on the total weight of your order, your location, and our normal method of despatch. Please be aware that we reserve the right to alter any miscalculation, plus or minus, and you will be notified prior to shipping of any changes.
When shipping items, we use the UK Royal Mail, EVRI, DPD and Parcel Force in the event of a parcel arriving with contents damaged ALL the packaging must be kept for inspection by the delivering shipping contractor whoever that contractor is, failure to adhere to this WILL result in ANY claim being denied.
We do ship internationally and will always use a Tracked and Signed for service. We strive to use the best and most economical shipping services available
All shipping, insurance and import charges will be borne by the customer.
All lots are shipped at the buyers risk no compensation will be offered for items lost or broken in transit. Alternatively you can pay for your own courier.
Product Description
In working order

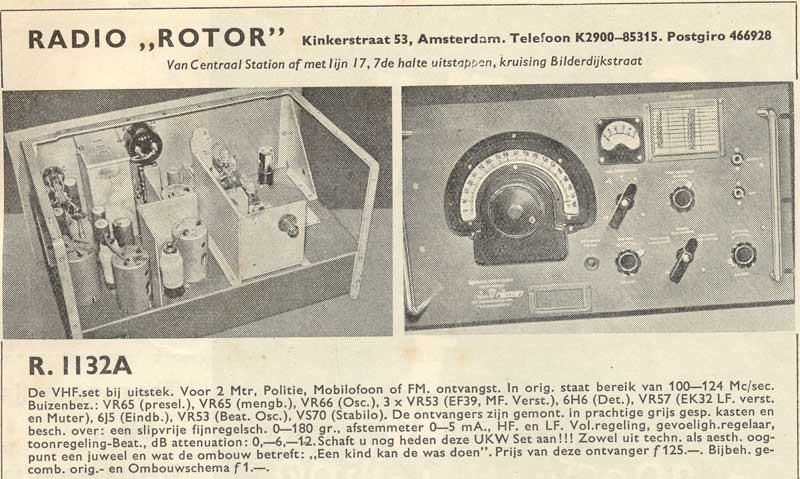

R1132 A receiver is intended as a ground radio, specially designed for the VHF band of 100-124 MHz, and can be used for R/T (AM) and D/F (Direction Finding) communications.
It is a super-heterodyne and essentially consists of an HF amplifier followed by a mixer stage with a separate oscillator, three IF amplifiers, a double diode for detection and AGC amplifier, and two LF stages.
There is also a BFO, which can be switched on separately. The sensitivity is such that at an antenna input of 20 μV, 100 % modulated, the output tube is fully driven. The signal-to-noise ratio is at 10 μV, modulated by 30% at 1000 Hz. better than 12 dB. When using the BFO, it is even possible to perform Direction-Finding with an input signal of 1 μV.
The HF amplifier is intended to increase selectivity rather than increase gain. The oscillator operates 12 MHz below the receive frequency, i.e. from 88-112 MHz. for the reception range from 100 to 124 MHz. The MF frequency of 12 MHz. is chosen so high to weaken the reception of mirror frequencies. There are a total of 8 tuned circuits for the MF gain.
BEFORE USE WE ADVISE THAT YOU HAVE THE RADIO AND POWER SUPPLY CHECKED BY A COMPETENT ELECTRICIAN
